2-Meter Copper J-poles
by KC5UYF
Features a low angle of radiation, rugged design, light weight and extreme portability. It's at home ground mounted or on a rooftop. Makes a good portable or permanent mount antenna. Can be mounted on any type mast, wood, metal or pvc etc. Great for apartment dwellers and others living where outside antennas are frowned upon. Because these antennas are "DC" shorted across the matching area they offer a good measure of protection against lightning. These are quiet antennas too, for the same reason.

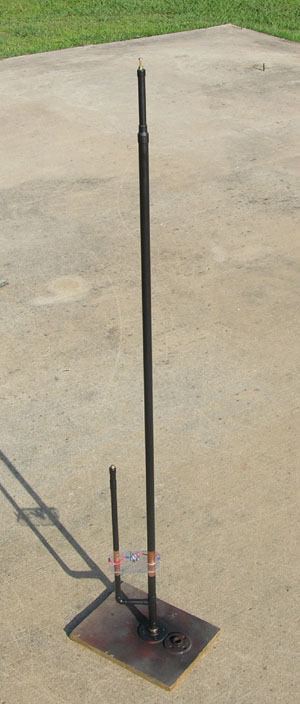

2 meter J-pole shipped fully
assembled except for 1 sheet metal screw (provided) that connects the upper and
lower halves of the taller vertical together.

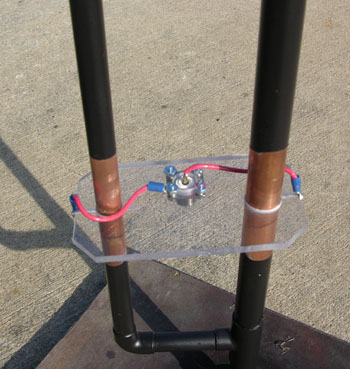

Long vertical is rigid 3/4" and 1/2" copper
tubing. The short matching stub is rigid 1/2" copper tubing.
Mounting stub is also 3/4" copper.
Antenna is painted with
a quality high temperature engine paint.
This antenna is strongly built but yet only weighs 4 pounds.
